REGUPOL sonus multi 3 Acoustic Underlay (formerly REGUPOL 4515-S 3mm)

RAU-004-carpet-001

New product

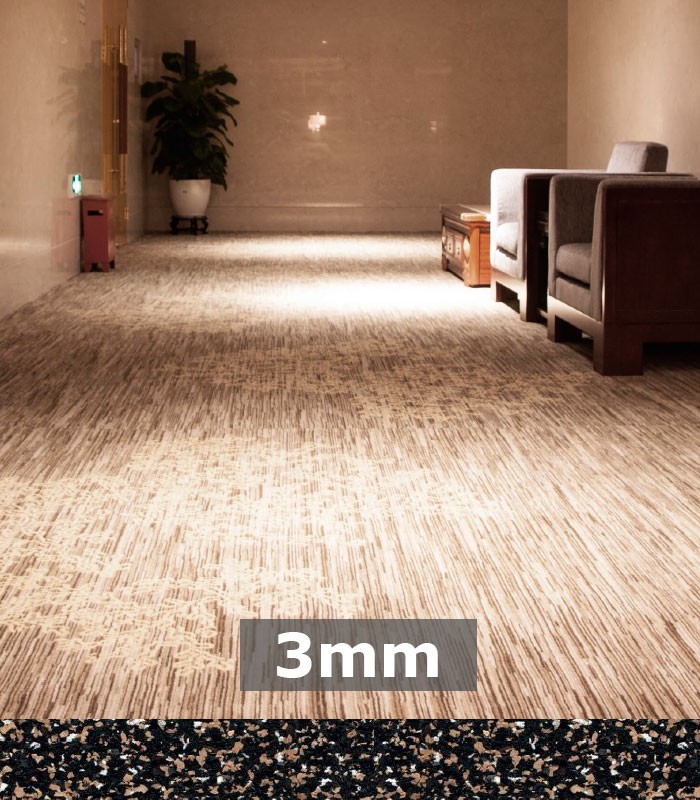

UNDERLAY FOR CARPET (3mm thick)

REGUPOL sonus multi 3 is a direct stick acoustic system designed to isolate approved floor coverings from the main structure of the building, reducing impact energy generated by general footfall.

More details


More info

CARPET FLOORS   |   CARPET TILES   |   CARPET RUGS

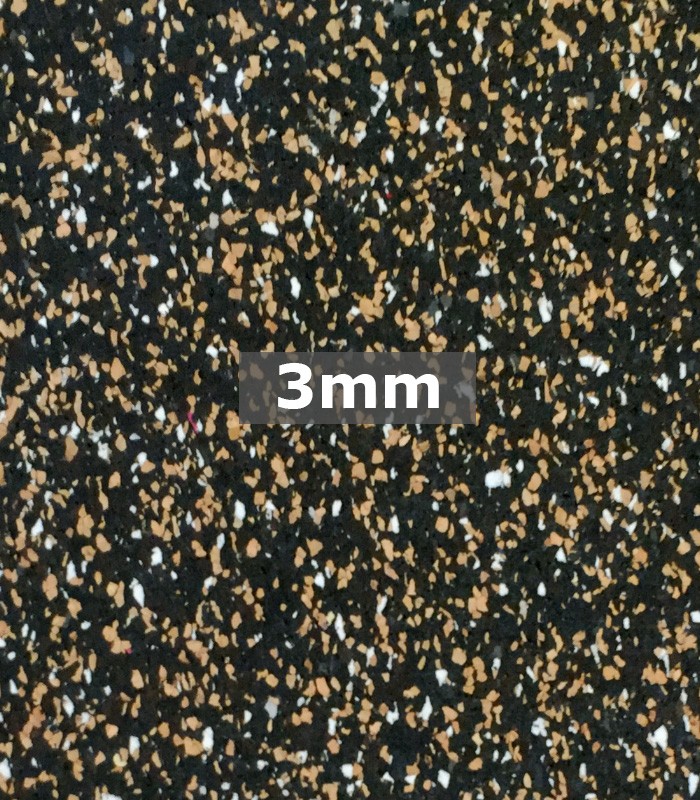

REGUPOL sonus multi 3 is manufactured from high quality, light weight PUR foam granulates and cork, bound with polyurethane.  REGUPOL sonus multi 3 attenuates impact sound at source.

REGUPOL sonus multi 3 is independently tested under laboratory controlled conditions and on-site testing to show it meets the Deemed-to-Satisfy Provisions of the current building regulations in accordance with the Building Code of Australia Part F5.4 Sound Insulation Ratings of Floors (Impact).

FEATURES:

  • Offers long term performance without collapse or bottoming out.

  • Minimal creep, even under high loads.

  • Excellent cohesion qualities.

  • PVC Free.

  • Low VOC and low odour.

  • Resistant to ageing and deformation.

  • Quick and easy to install.

  • Minimises construction heights.

  • A Good Environmental Choice Australia Certified sustainable product (GECA)

  • High quality and exact material thicknesses.

  • Made in Germany from recycled, lightweight material

  • Suitable for use with under floor heating.

  • Protects expansion joints.

  • Sanded on one side.

  • Limits sound transference.

  • Cushioning qualities make flooring comfortable underfoot.

  • Proven durability.

  • Manufactured and Certified to OHAS 18001:2007, DIN ISO 9001:2008, DIN ISO 14001:2004 Management Systems.

  • Regupol is a Natspec product partner.

ADHESIVES

Regupol adhesives are formulated to maximize the performance of Regupol flooring and acoustic products. Regupol adhesives are made in Australia and are VOC compliant for green buildings, offering specifiers and installation contractors a warranted flooring system.


Data sheet
Product descriptionElastic pre-manufactured acoustic underlay made from foam-granulates and cork, bound with polyurethane.

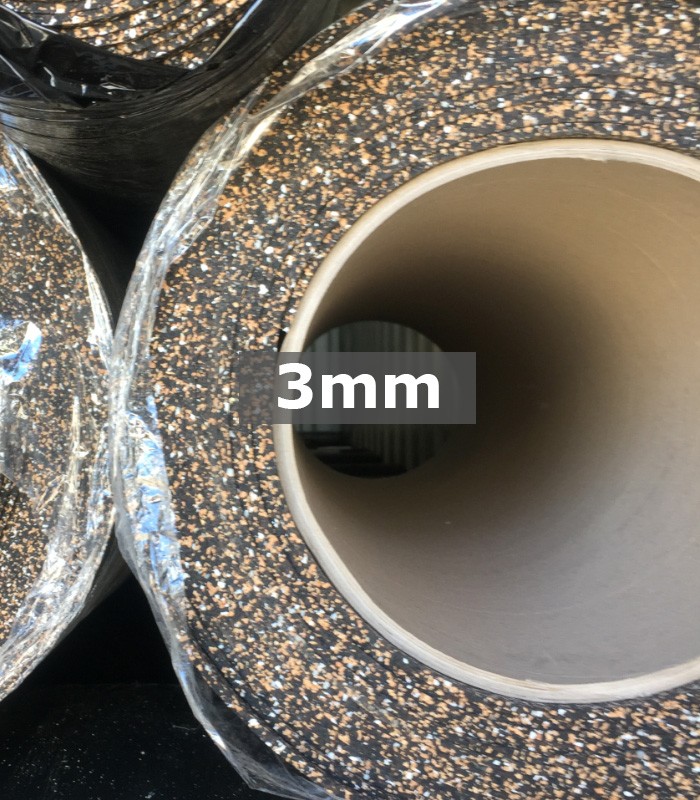

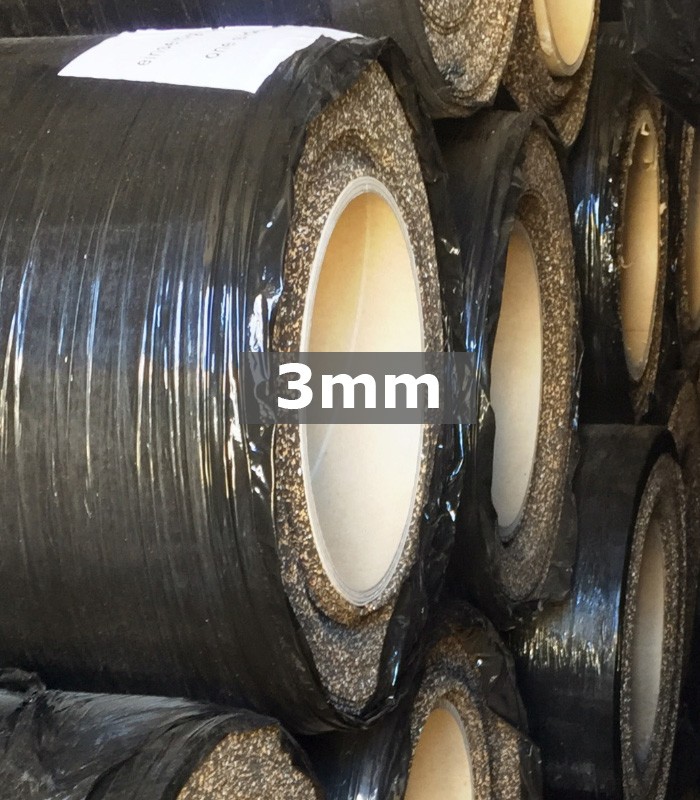

Roll width1.0 metres
Roll length20 metres
Material thickness3mm
Specific weight1.25kgs/m2
Thermal conductivity0.12 W/mK
Density430 kgs/m3
Tensile strength0.9 N/mm2 (DIN 53571, Specemin B)
Elongation at break30% (DIN 53571, Specimen B)
Temperature resistance-40˚C to +115˚C
Fire classificationB2 (DIN 4102)
NoticeData is based on periodical lab testing of test specimen taken from the actual manufacturing process and show the average values as measured. Slight tolerances within the common limits are possible.

Underlay Brochures - General


Further Technical Information

You can find further technical information, such as

tech data sheets and test reports

on the main ABS West website at:

https://www.abswest.com.au/index.php/products/flooring-and-underlay/acoustic-underlay/
