REGUPOL sonus eco 5 Acoustic Underlay (formerly K225 5mm)
UNDERLAY FOR RUBBER FLOORING (5mm thick)

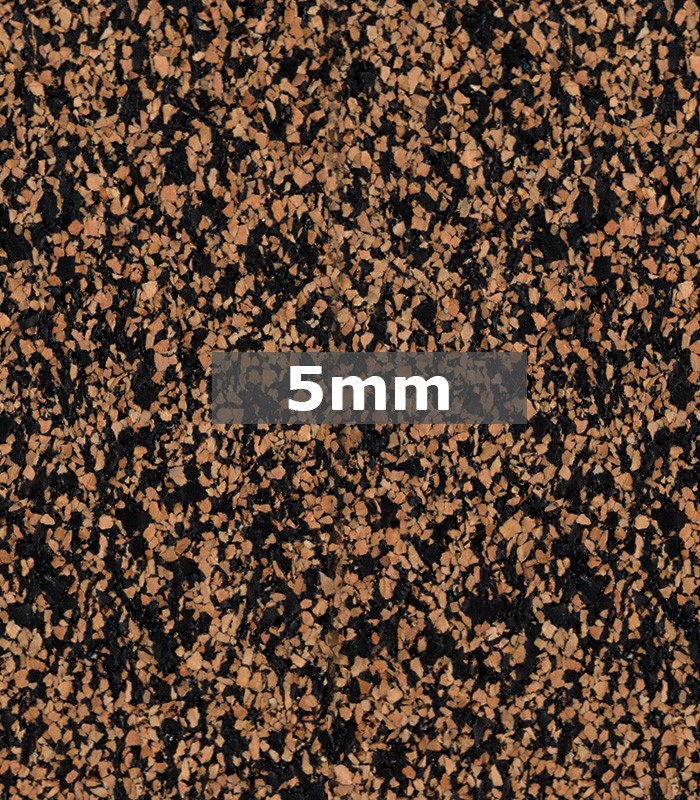

REGUPOL sonus eco 5 Acoustic Underlay is made from recycled SBR rubber granulates and cork bound with polyurethane. The cork and rubber combo supports excellent cohesion between the polyurethane adhesive, the acoustic underlay and the rubber floor.
More info
Areas of application:
RUBBER FLOORING

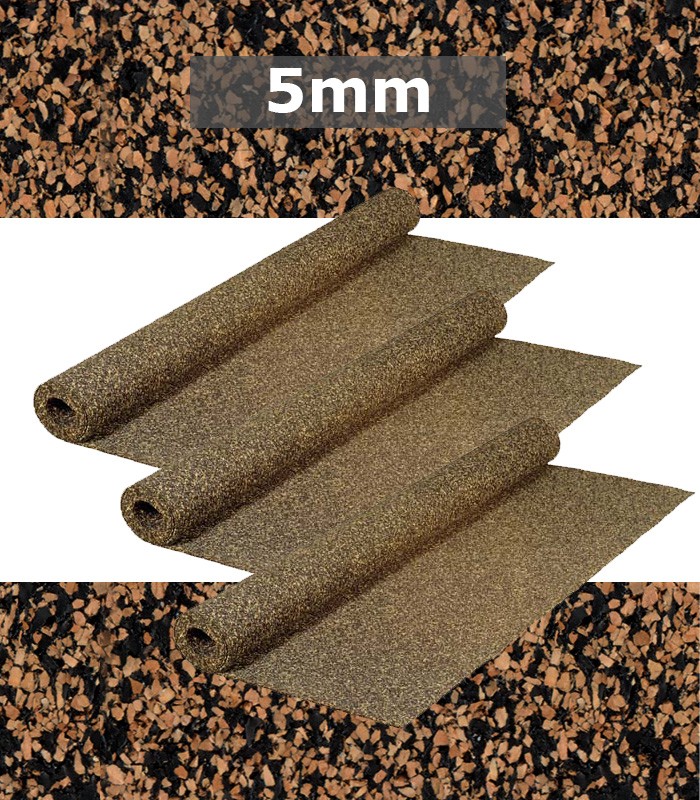

REGUPOL sonus eco 5 is available in rolls or as modular tiles (new format). This new format facilitates fast installation and is ideal for the DIY installer. This underlay produces an effective acoustic barrier to install parquetry and timber floors directly to the surface finish.
REGUPOL sonus eco 5 is independently tested under laboratory controlled conditions and on-site testing to show it meets the Deemed-to-Satisfy Provisions of the current building regulations in accordance with the Building Code of Australia Part F5.4 Sound Insulation Ratings of Floors (Impact).
FEATURES:
Offers long term performance without collapse or bottoming out.
Minimal creep, even under high loads.
PVC Free
Excellent cohesion qualities.
Available in rolls and modular tiles (new format) - supports fast installation.
Quick and easy to install.
Minimises construction heights.
A Good Environmental Choice Australia Certified sustainable product (GECA)
High quality and exact material thicknesses.
Made in Germany from recycled material
Suitable for use with under floor heating.
Protects expansion joints.
Limits sound transference.
Cushioning qualities make flooring comfortable underfoot.
Proven durability.
Manufactured and Certified to OHAS 18001:2007, DIN ISO 9001:2008, DIN ISO 14001:2004 Management Systems.
Regupol is a Natspec product partner.
ADHESIVES
Regupol adhesives are formulated to maximize the performance of Regupol flooring and acoustic products. Regupol adhesives are made in Australia and are VOC compliant for green buildings, offering specifiers and installation contractors a warranted flooring system.
Data sheet
| Product description | Elastic pre-manufactured acoustic underlay made from selected SBR and cork particles, bound with polyurethane. |
| Roll width | 1.0 metres |
| Roll length | 20 metres |
| Modular tile size | 1050 x 500mm |
| Material thickness | 5mm |
| Specific weight | 2.25kgs/m2 |
| Thermal conductivity | 0.12 W/mK |
| Density | 450kgs/m3 |
| Tensile strength | 0.55 N/mm2 (DIN 53571, Specimen B) |
| Elongation at break | 22% (DIN 53571, Specimen B) |
| Temperature resistance | -40˚C to +115˚C |
| Fire classification | B2 (DIN 4102) |
| Notice | Data is based on periodical lab testing of test specimen taken from the actual manufacturing process and show the average values as measured. Slight tolerances within the common limits are possible. |
Further Technical Information
You can find further technical information, such as
tech data sheets and test reports
on the main ABS West website at:
https://www.abswest.com.au/index.php/products/flooring-and-underlay/acoustic-underlay/
