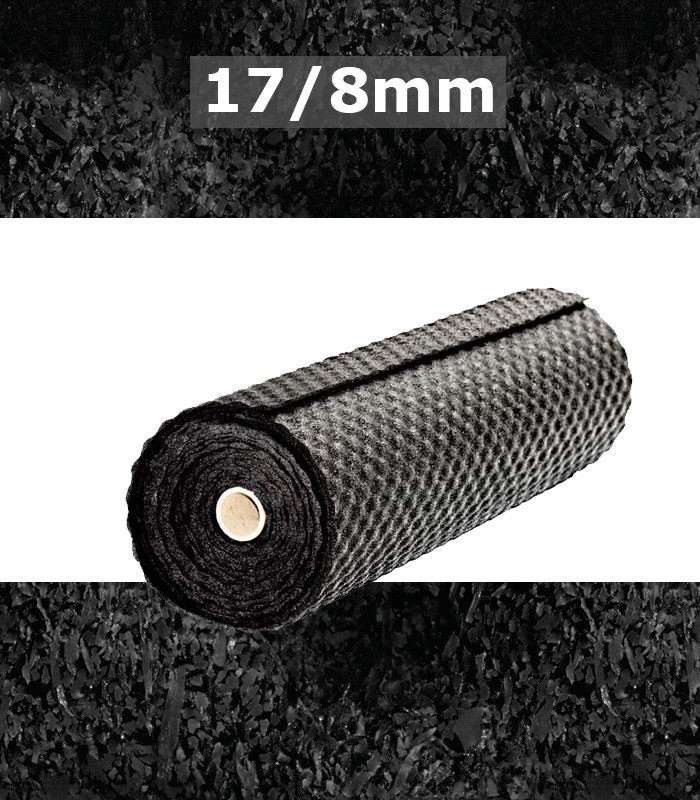

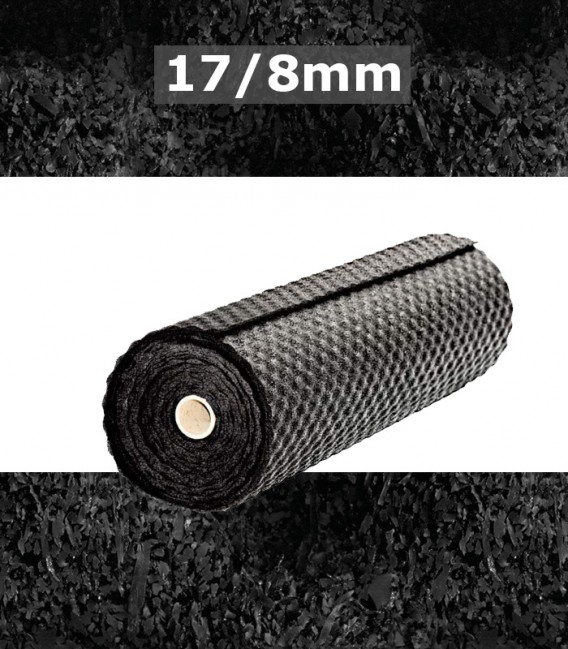

REGUPOL sonus curve 17 Acoustic Underlay (formerly 6010 17/8)

RAU-005-screed-008

New product

UNDERLAY FOR SCREED BEDS (17/8mm thick)

REGUPOL sonus curve 17 is finished in a 3D dimple profile and manufactured to a specific density, allowing the impact sound to reduce and dissipate.  The finished product is technically superior when it comes to heavy duty screed beds.

More details


More info

Areas of application:

SCREED BEDS

Independently tested under laboratory controlled conditions and on-site testing to show it meets the Deemed-to-Satisfy Provisions of the current building regulations in accordance with the Building Code of Australia Part F5.4 sound Insulation Ratings of Floors (Impact).

  • Offers long term performance without collapse or bottoming out.

  • Also available in new modular format (tiles) - supports fast installation.

  • Minimal creep, even under high loads.

  • Resistant to ageing and deformation.

  • Quick and easy to install.

  • PVC free.

  • Made in Germany from recycled materials.

  • Minimises construction heights.

  • A Good Environmental Choice Australia (GECA) certified sustainable product.

  • High quality and exact material thickness.

  • Suitable for use with under floor heating.

  • Protects expansion joints.

  • Limits sound transference.

  • Cushioning qualities make flooring comfortable underfoot.

  • Proven durability.

  • Manufactured and Certified to OHAS 18001:2007, DIN ISO 9001:2008, DIN ISO 14001:2004 Management Systems.

ADHESIVES

Regupol adhesives are formulated to maximize the performance of Regupol flooring and acoustic products. Regupol adhesives are made in Australia and are VOC compliant for green buildings, offering specifiers and installation contractors a warranted flooring system.


Data sheet
Product descriptionPre-manufactured acoustic underlay made from selected SBR rubber, bound with polyurethane
MaterialRecycled rubber granules, with highly elastic polyurethane, volume elastic
Roll width1.25 metres
Roll length10 metres
Modular tile size1050 x 600mm

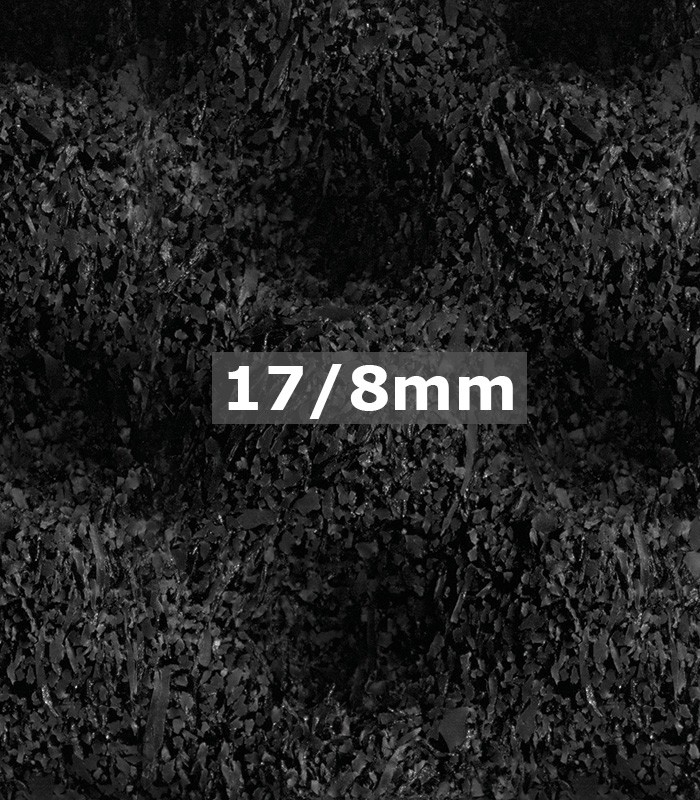

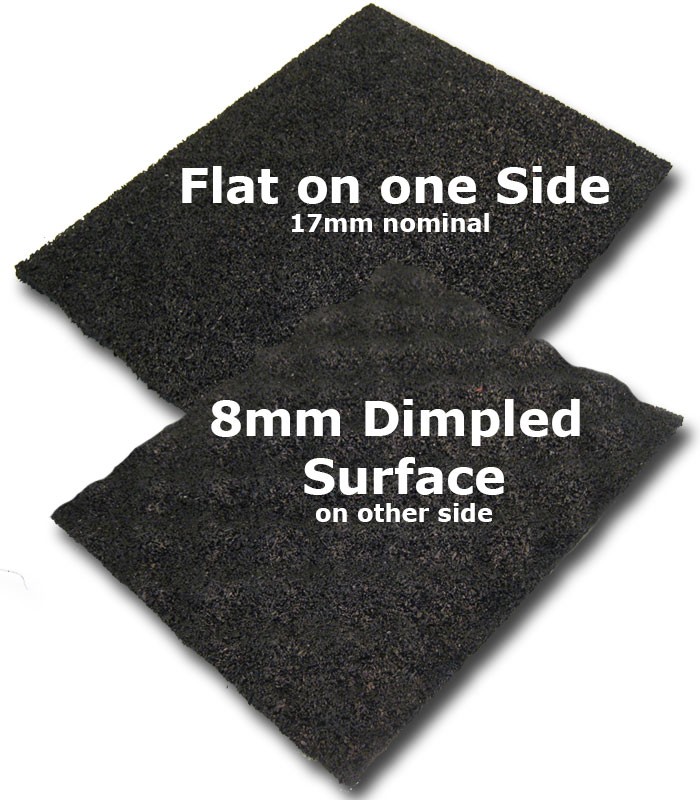

Material thickness17mm (8mm dimpled surface on one side)
Specific weight7.7kgs/m2
Mean Value of Dynamic Stiffness15MN/m3 (DIN EN 29052-1)
Thermal conductivity0.14 W/mK
Density550 kgs/m3
Tensile strength0.5 N/mm2 (DIN 53571, Specimen B)
Elongation at break20% (DIN 53571, Specimen B)
Temperature resistance-40˚C to +115˚C
Fire classificationB2 (DIN 4102)
Load abilityUp to 0.5kp/cm2, 5N/cm2, 5,000kp/m2
NoticeData is based on periodical lab testing of test specimen taken from the actual manufacturing process and show the average values as measured. Slight tolerances within the common limits are possible.

Underlay Brochures - Screed


Further Technical Information

You can find further technical information, such as

tech data sheets and test reports

on the main ABS West website at:

https://www.abswest.com.au/index.php/products/flooring-and-underlay/acoustic-underlay/
