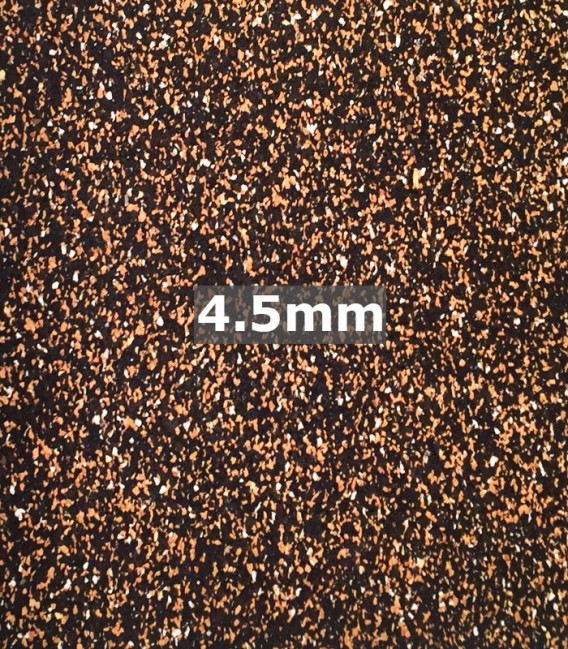

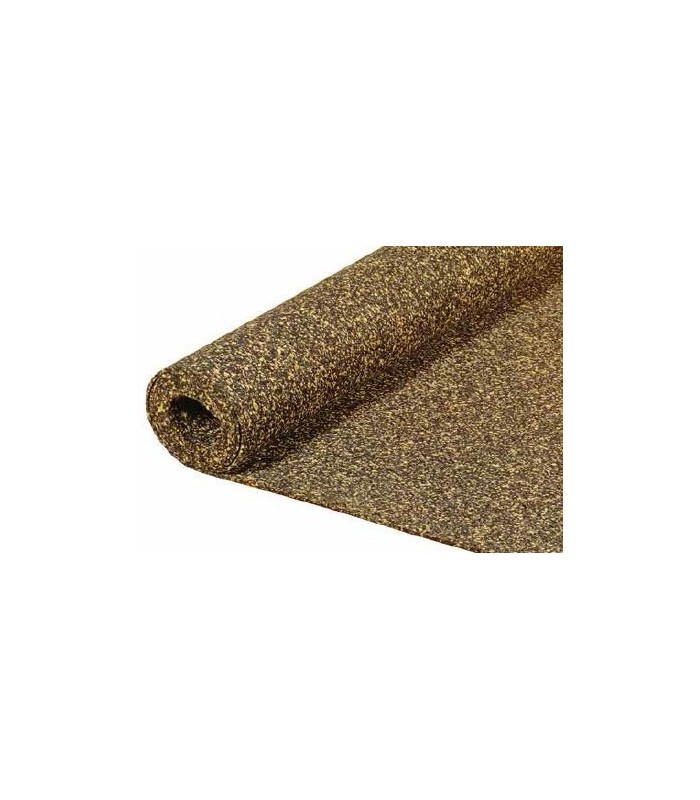

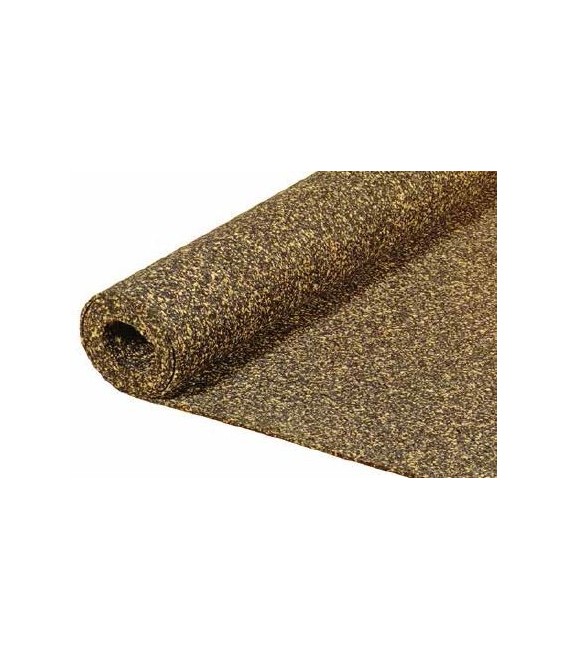

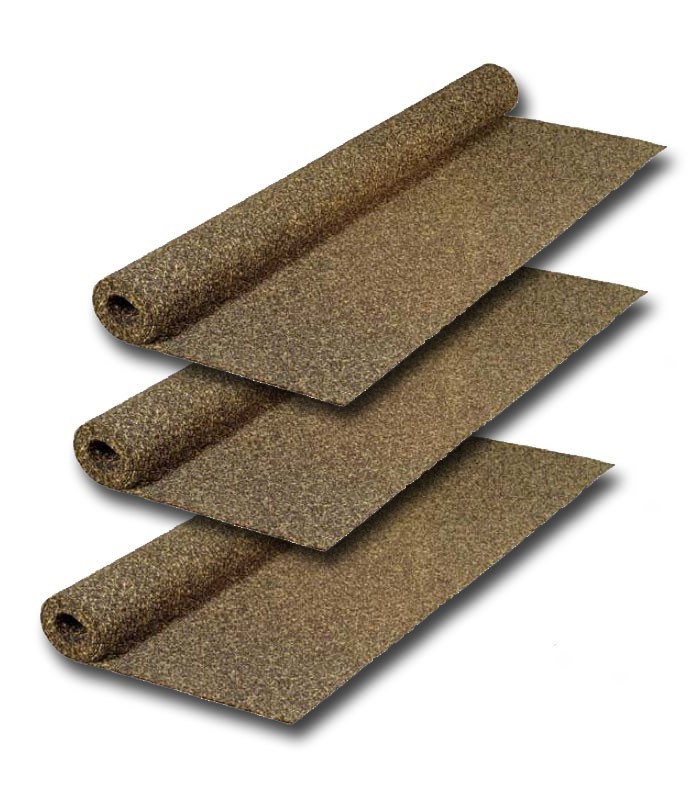

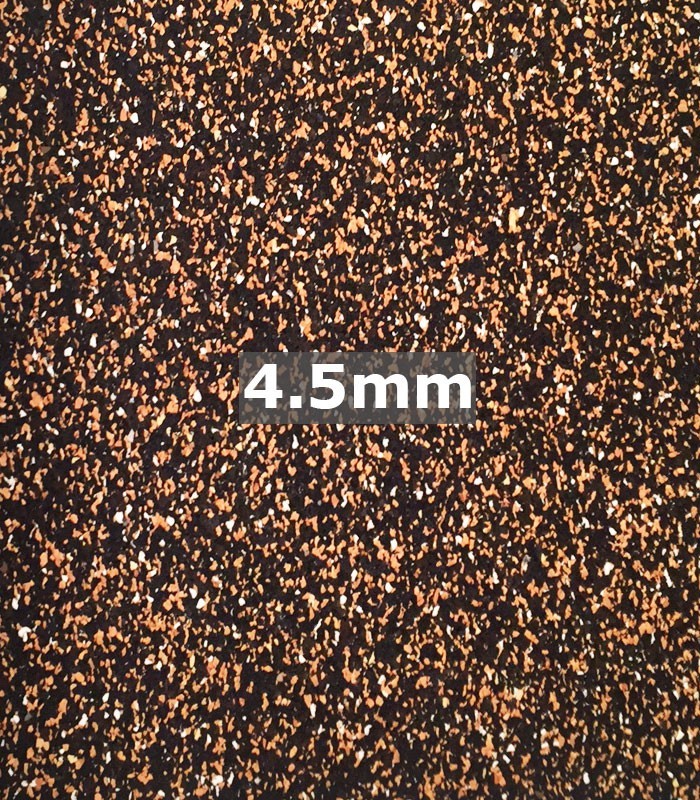

REGUPOL sonus multi 4.5 Acoustic Underlay (formerly REGUPOL 4515 4.5mm)

RAU-002-Tiles-002

New product

UNDERLAY FOR TILED FLOORS (4.5mm thick)

REGUPOL sonus multi 4.5 is a durable direct stick acoustic underlay for tiles. REGUPOL sonus multi 4.5 is designed to isolate tiles from the main structure and is specifically engineered to absorb the impact noise generated by tiled floor finishes.

More details


More info

REGUPOL sonus multi 4.5 attenuates impact sound at source - directly under the tiled floor finish. Tiles are conveniently installed directly on top of the acoustic underlay using a high bond tile adhesive - which is also acoustically proven.

Independently tested under laboratory controlled conditions and on-site testing to show it meets the Deemed-to-Satisfy Provisions of the current building regulations in accordance with the Building Code of Australia Part F5.4 sound Insulation Ratings of Floors (Impact).

  • Offers long term performance without collapse or bottoming out.

  • Minimal creep, even under high loads.

  • Resistant to ageing and deformation.

  • Quick and easy to install.

  • Minimises construction heights.

  • High quality and exact material thicknesses.

  • Suitable for use with under floor heating.

  • Protects expansion joints.

  • Limits sound transference

  • Cushioning qualities make flooring comfortable underfoot

  • Proven durability

  • Manufactured and Certified to OHAS 18001:1999, DIN ISO 9001:2000, DIN ISO 14001:2004 Management Systems.

ADHESIVES

Regupol adhesives are formulated to maximize the performance of Regupol flooring and acoustic products. Regupol adhesives are made in Australia and are VOC compliant for green buildings, offering specifiers and installation contractors a warranted flooring system.


Data sheet
Product descriptionElastic pre-manufactured acoustic underlay made from foam-granulates and cork, bound with polyurethane.
Roll width1.0 metres
Roll length20 metres
Modular tile size1050 x 500mm
Material thickness4.5mm
Specific weight1.96kgs/m2
Thermal conductivity0.12 W/mK
Density430 kgs/m3
Tensile strength0.9 N/mm2 (DIN 53571, Specemin B)
Elongation at break30% (DIN 53571, Specimen B)
Temperature resistance-40˚C to +115˚C
Fire classificationB2 (DIN 4102)
NoticeData is based on periodical lab testing of test specimen taken from the actual manufacturing process and show the average values as measured. Slight tolerances within the common limits are possible.

Underlay Brochures - Tiles


Further Technical Information

You can find further technical information, such as

tech data sheets and test reports

on the main ABS West website at:

https://www.abswest.com.au/index.php/products/flooring-and-underlay/acoustic-underlay/
