REGUPOL sonus curve 6 Acoustic Underlay (formerly REGUPOL 6015 6/3mm)
UNDERLAY FOR ENGINEERED TIMBER, TONGUE & GROOVE, PARQUETRY & BAMBOO (6/3mm thick)
REGUPOL sonus curve 6 is an acoustic underlay with a 3D dimple profile used for soundproofing solid timber, engineered timber and T&G flooring. The acoustic performance of this underlay makes it ideal for apartments.
More info
Areas of application:
TONGUE & GROOVE TIMBER | BAMBOO | PARQUETRY OVER PLY | ENGINEERED TIMBER
Independently tested under laboratory controlled conditions and on-site testing to show it meets the Deemed-to-Satisfy Provisions of the current building regulations in accordance with the Building Code of Australia Part F5.4 sound Insulation Ratings of Floors (Impact).
Offers long term performance without collapse or bottoming out.
Minimal creep, even under high loads.
Resistant to ageing and deformation.
Quick and easy to install.
PVC free.
Made in Germany from recycled materials.
Minimises construction heights.
A Good Environmental Choice Australia (GECA) certified sustainable product.
High quality and exact material thicknesses.
Suitable for use with under floor heating.
Protects expansion joints.
Limits sound transference.
Cushioning qualities make flooring comfortable underfoot.
Proven durability.
Manufactured and Certified to OHAS 18001:2007, DIN ISO 9001:2008, DIN ISO 14001:2004 Management Systems.
ADHESIVES
Regupol adhesives are formulated to maximize the performance of Regupol flooring and acoustic products. Regupol adhesives are made in Australia and are VOC compliant for green buildings, offering specifiers and installation contractors a warranted flooring system.
Data sheet
| Product description | Pre-manufactured acoustic underlay made from selected SBR rubber, bound with polyurethane |
| Roll width | 1.25 metres |
| Roll length | 20 metres |
| Modular tile size | 1050 x 600mm |

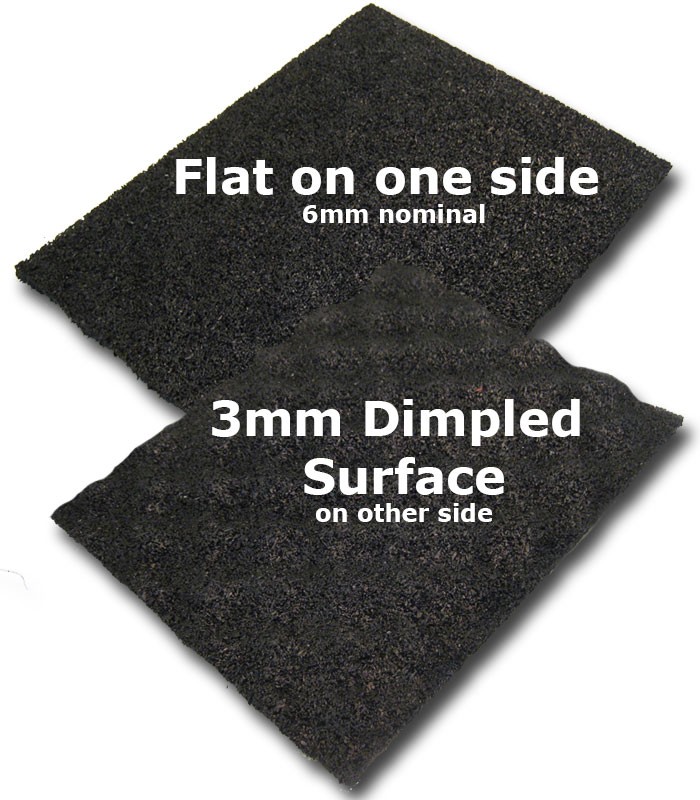

| Material thickness | 6mm (3mm dimpled surface on one side) |
| Specific weight | 2.75kgs/m2 |
| Thermal conductivity | 0.14 W/mK |
| Density | 670kgs/m3 |
| Tensile strength | 0.5 N/mm2 (DIN 53571, Specimen B) |
| Elongation at break | 70% (DIN 53571, Specimen B) |
| Temperature resistance | -40˚C to +115˚C |
| Fire classification | B2 (DIN 4102) |
| Notice | Data is based on periodical lab testing of test specimen taken from the actual manufacturing process and show the average values as measured. Slight tolerances within the common limits are possible. |
Performance
Acoustic Performance (test results for engineered timber)
__________________________________________________________________
| TEST: Gabba TTM | LnT,w(C1) | FllC |
| Bare Slab 150mm concrete | 73 (-12) | 29 |
| Regupol 6015 6/3mm with 14mm Engineered Timber | 58 (0)=58 | 48 |
| Improvement | ∆L'nT,w 15 | ∆Fllc 19 |
__________________________________________________________________
The Unit of Measurement Explained:
L'n,W - Weighted Normalised Impact Sound Pressure Level.
C1 - Correction factor which allows spectrum adaptation for impact sound level.
Further Technical Information
You can find further technical information, such as
tech data sheets and test reports
on the main ABS West website at:
https://www.abswest.com.au/index.php/products/flooring-and-underlay/acoustic-underlay/
