RAU-001-Timber-011
New product

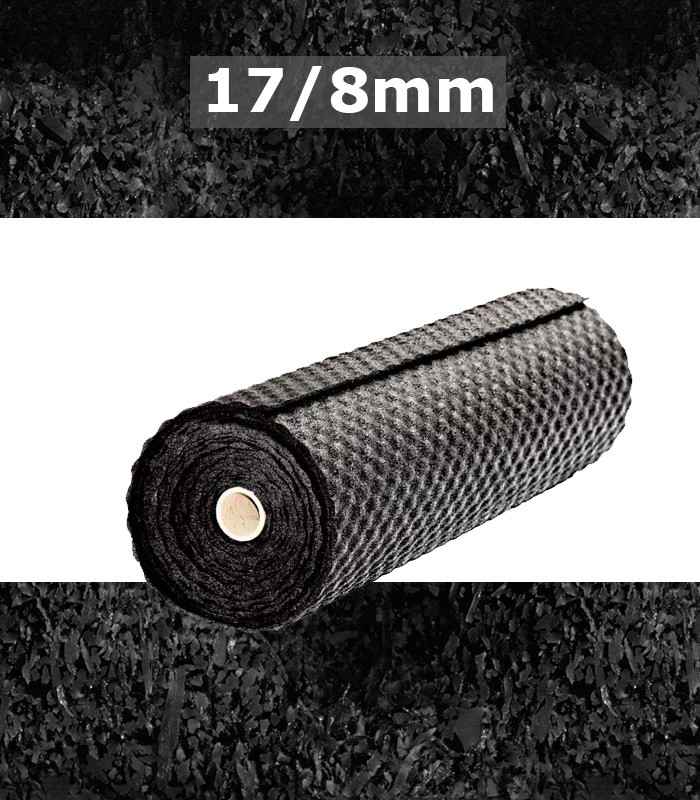

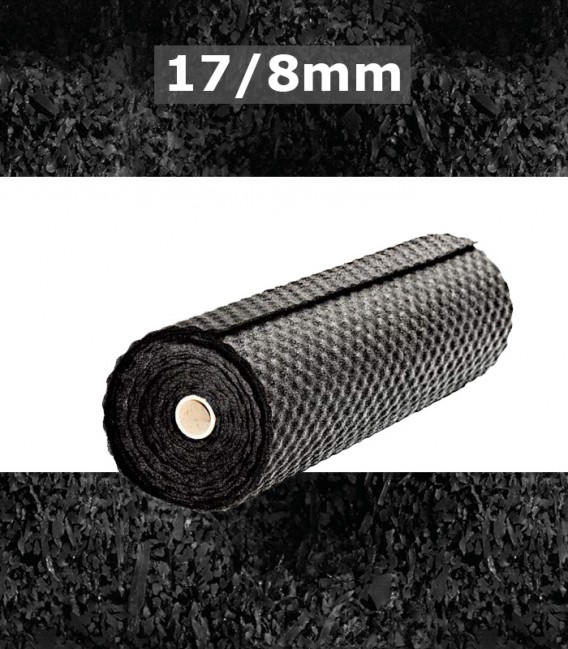

Product description | Pre-manufactured acoustic underlay made from selected SBR rubber, bound with polyurethane |
Material | Recycled rubber granules, with highly elastic polyurethane, volume elastic |
Roll width | 1.25 metres |
Roll length | 10 metres |
Modular tile size | 1050 x 600mm |

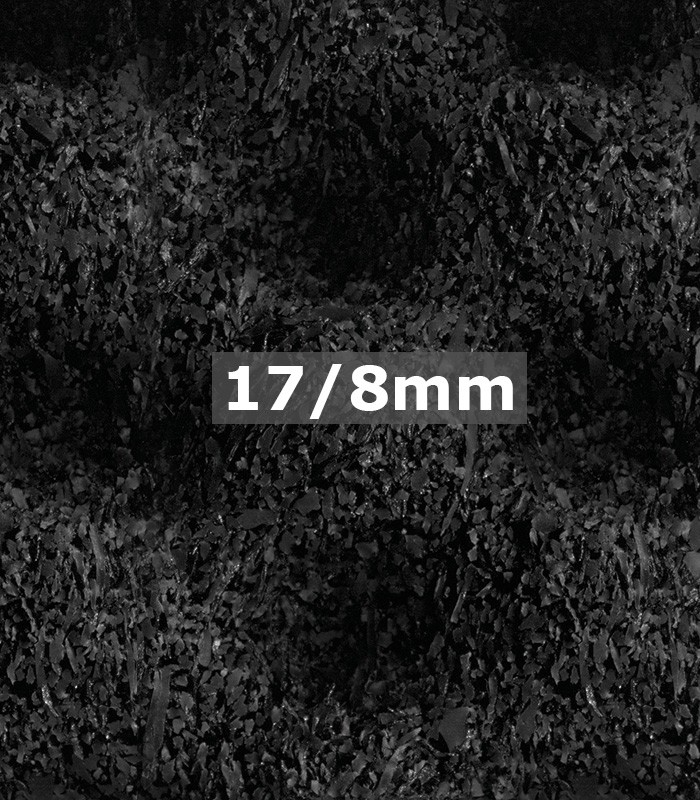

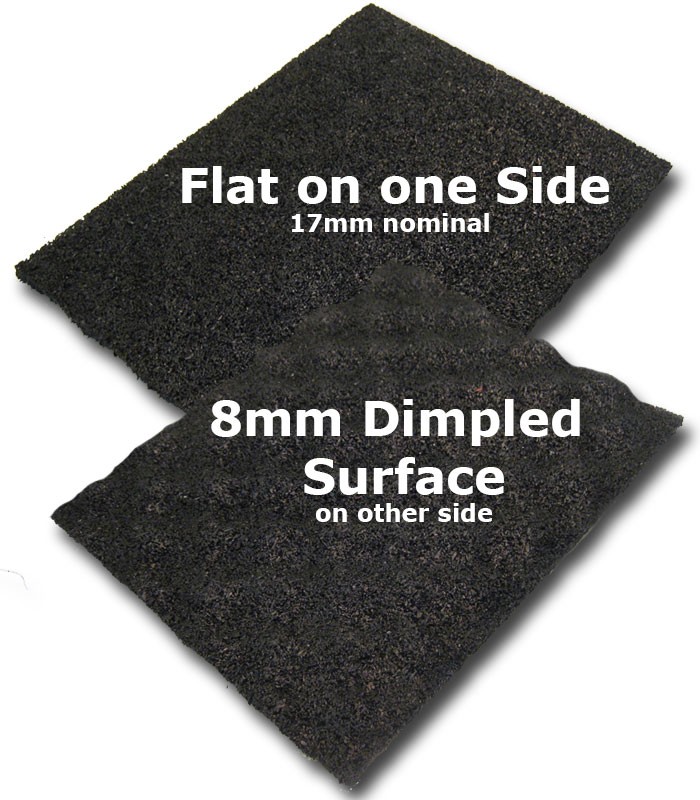

Material thickness | 17mm (8mm dimpled surface on one side) |
Specific weight | 7.7kgs/m2 |
Mean Value of Dynamic Stiffness | 15MN/m3 (DIN EN 29052-1) |
Thermal conductivity | 0.14 W/mK |
Density | 550 kgs/m3 |
Tensile strength | 0.5 N/mm2 (DIN 53571, Specimen B) |
Elongation at break | 20% (DIN 53571, Specimen B) |
Temperature resistance | -40˚C to +115˚C |
Fire classification | B2 (DIN 4102) |
Load ability | Up to 0.5kp/cm2, 5N/cm2, 5,000kp/m2 |
Notice | Data is based on periodical lab testing of test specimen taken from the actual manufacturing process and show the average values as measured. Slight tolerances within the common limits are possible. |
__________________________________________________________________
TEST: CSIRO INR 141 | Ln,w(C1) | llC |
Bare Slab 170mm concrete | 80 (-11) | 27 |

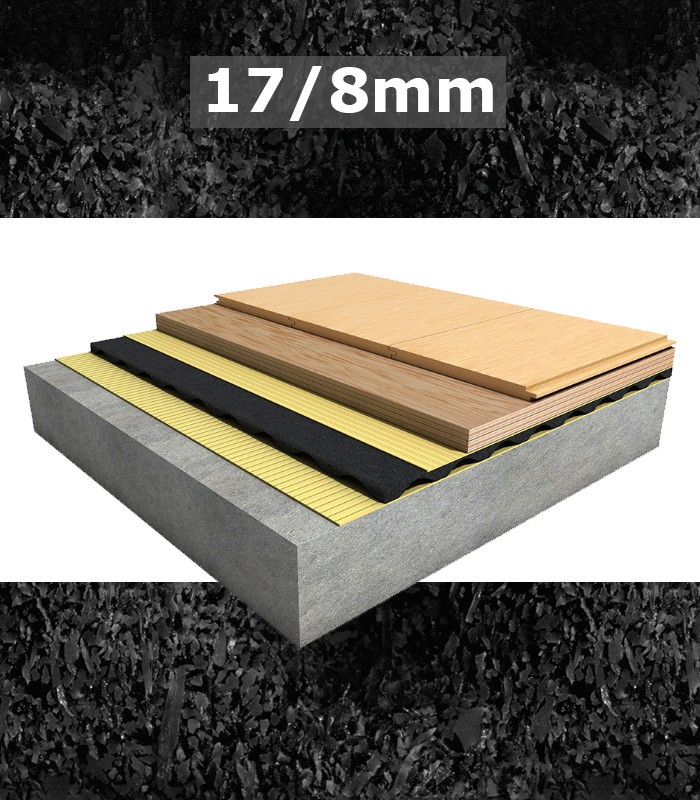

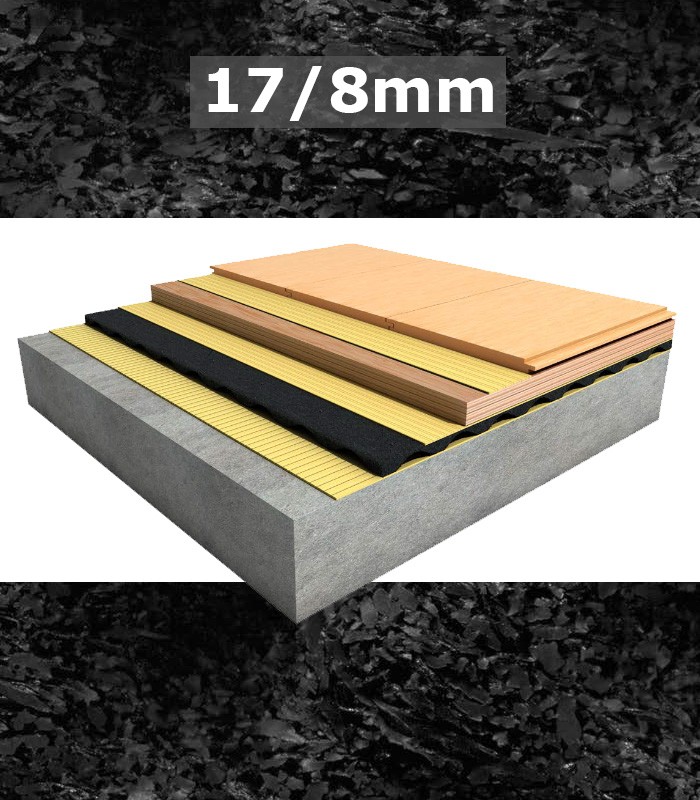

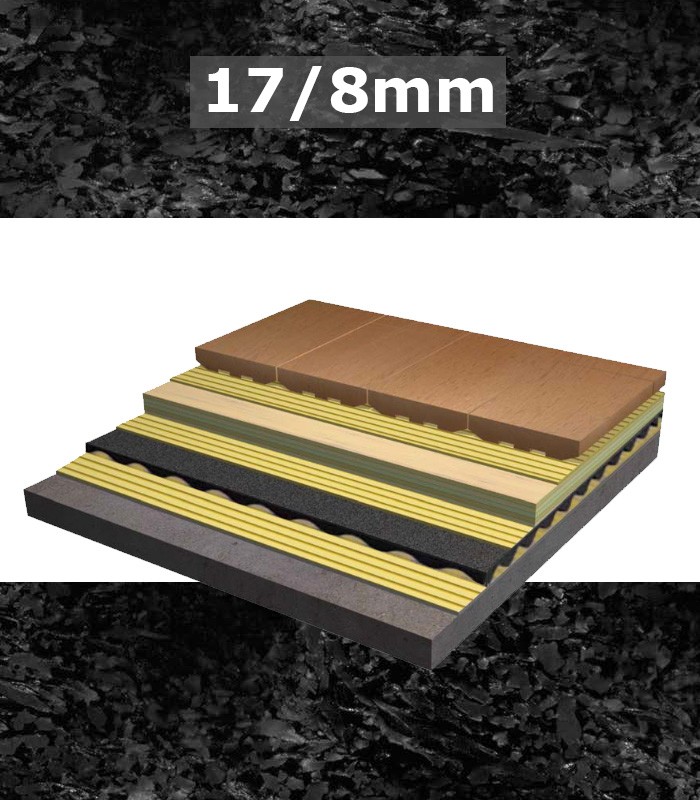

Regupol 6010 17/8mm +19mm Hardwood Strip Timber | 53 (1)=54 | 55 |
Improvement | ∆L'nT,w 27 | ∆llc 27 |
__________________________________________________________________
